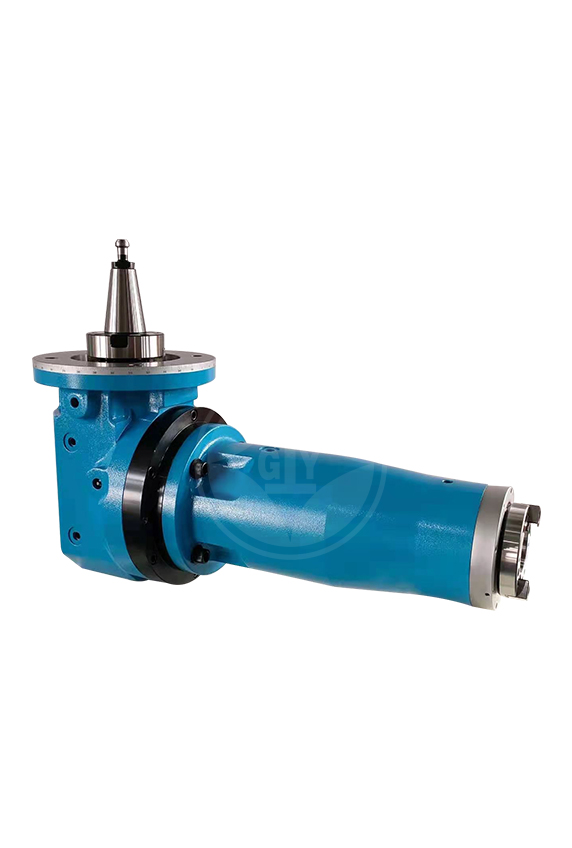

HE73/HE75 Angular Extend Milling Head

HE73/HE75 Angular Extend Milling Head

  • Country of Origin:Taiwan
  • Model:HE73, HE75

DETAIL SPECIFICATIONS

Features
Could change machine to make vertical milling.
Volume is small, convenient to operate, suitable to make complex of machine tools.
The reduction ratio is 1:1.
To install dial scale for 360° angles adjustment of the choice of milling
The processing suitable to inner boring and milling of slots, end face repair, and beveled chamfering, etc.
Gear and spindle are made of chromium molybdenum alloy steel, through quenching and precise grinding.
Bearing are use ball bearing, suitable for high-speed and light cutting.
Pull rod can be NT or BT (must remove the pull stud), the suitable pull rod can be ordered and delivered together with the product when purchase.
The milling head can only tapping and screw socket process while reversing, can't cutting and drilling or other process, make machinery damaged.
